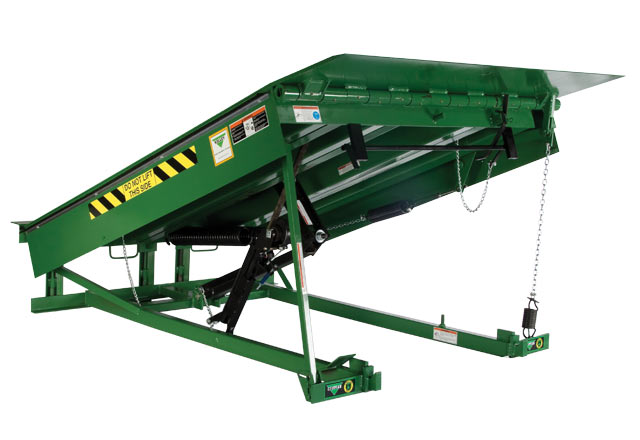

CM Series Mechanical Dock Leveler

The Kelley Entrematic CM Series Mechanical Dock Leveler provides exceptional endurance and efficiency.  Available in nine different models with size dimensions ranging from 6′ x 6′ to 7′ x 10′, the leveler’s unlimited float hold-down requires less force to walk down into position and produces less wear on components.  The CM Series Mechanical Dock Leveler also has an overall lower lifetime cost of ownership than conventional mechanical dock levelers.

Read More

CM SERIES MECHANICAL DOCK LEVELER DESIGN FEATURES

Unlimited float down hold

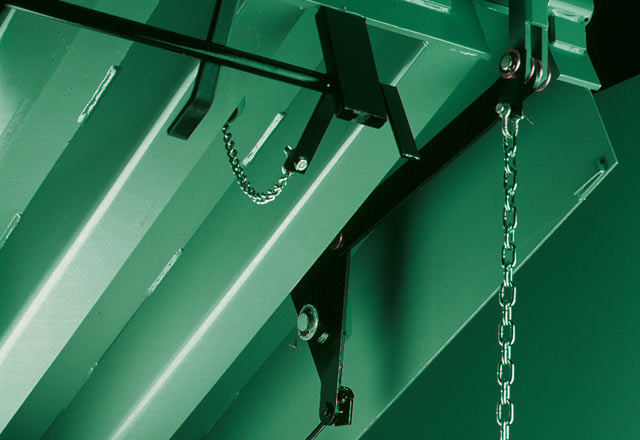

Automatic lip extension

Working range toe guards

Below-dock end loading capability

Integral maintenance strut and lip support latch

Heavy-duty dock bumpers

Product Options

Available Options

Factory Installed Brush Weatherseal
Factory Installed Neoprene Weatherseal
ENERGY GUARD® Perimeter Weatherseal System
18” Lip (457 mm)
20” Lip (508 mm)
24” Pit Conversion (610 mm)
Spray Foam Insulated Deck
Galvanized Finish (Deck, Lip & Subframe Only)
(40k only)
Full Operating Range Toe Guards
Lip Taper
High Lip Crown

Bumper Options

B410-14
B610-14
B610-14F
VB420-11F
VB420-11 Steel Faced

Capacity

30K lb (13.6K kg)
35K lb (15.8K kg)
40K lb (18K kg)
45K lb (20.4K kg)

MEET YOUR DOCK CHALLENGES DAY-IN AND DAY-OUT WITH KELLEY ENTREMATIC

MEET YOUR DOCK CHALLENGES DAY-IN AND DAY-OUT WITH KELLEY ENTREMATIC

Pit Details

CM Mechanical Dock Leveler & STAR Restraint Pit Details
(pdf - 342.93 KB)

Specs & Resources

CM Mechanical Dock Leveler Long Form Spec
(doc - 47 KB)
CM Mechanical Dock Leveler Product Spec
(pdf - 190.19 KB)
CM Mechanical Dock Leveler Product Spec (Spanish)
(pdf - 185.76 KB)

User Manuals

CM Series Mechanical Dock Leveler User Manual
(pdf - 3.05 MB)
CM Series Mechanical Dock Leveler User Manual (Spanish)
(pdf - 4.57 MB)
